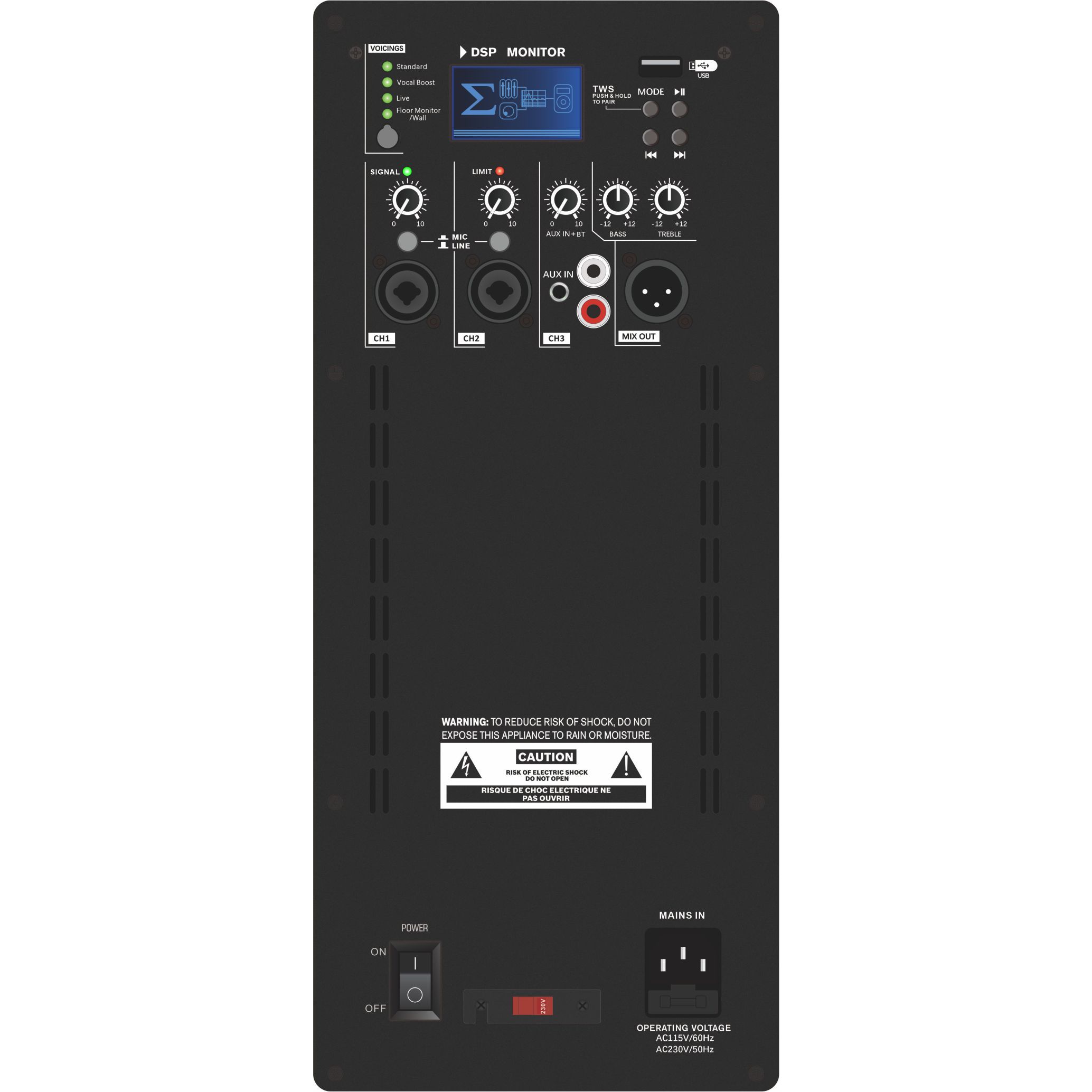

DSP1807 DSP 2-way Active Speaker Amplifier
Related Modules
-
Power amplifier type
Class D Amplifier With SMPS
LLC high-efficiency resonant power supplies
800W
Output power per Channel
LF 500W /4Ω+ HF 200W/8Ω
Protection
Short Circuit Protection
Overheating Protection
Overcurrent Protection
Limiter
Indicators
4×DSP Presets Modes Led (Green)
1×Limit Led (Red)
1×Signal Led (Green)
Connectors
2×XLR/TRS Combo Jack Input
1×3.5mm Stereo Jack Input
1×Stereo RCA Input
1×XLR Output
USB Set Connector
Power Connection: Power CON
Operating voltage Range
220-240 VAC,5A,50/60Hz,100-120 VAC,12A
DSP
48K Hz/24 Bit With Extended Dynamics
Connection
Bluetooth V5.0
Bluetooth TWS
Audio Processing
DRC (Dynamic Range Compression), EQ, Level, Noise Gate, AD-DA, Delay

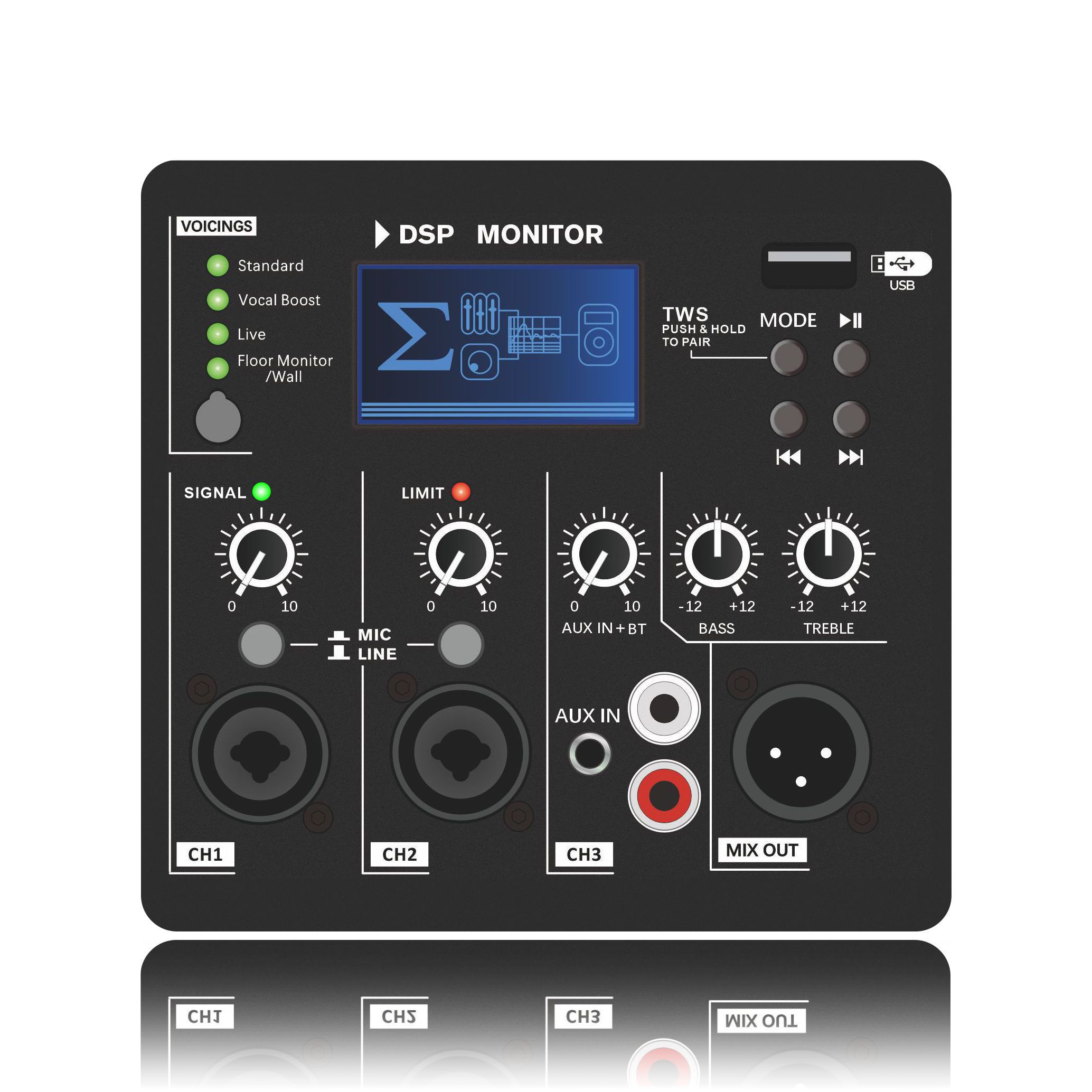

User Control
DSP Presets Mode Switch
2×Channel Volume Control
Aux In / Bluetooth Volume Control
Bass Volume Control
Treble Volume Control
Mic/Line Signal input switch
Power Supply: On/Off Switch
THD+N Rated Power(%) &4Ω:
LF0. 1%/ HF0. 1%
S/N RATIO Rated Power +A
>LF90dB/>HF90dB
Installation dimensions
380mm×160mm
U Disk Media Player:
MODE
▶▎▎
▎◀◀
▶▶▎
Bluetooth / U Disk
TWS (Push and Hold to Pair)
Pause
Previous
Next
-
