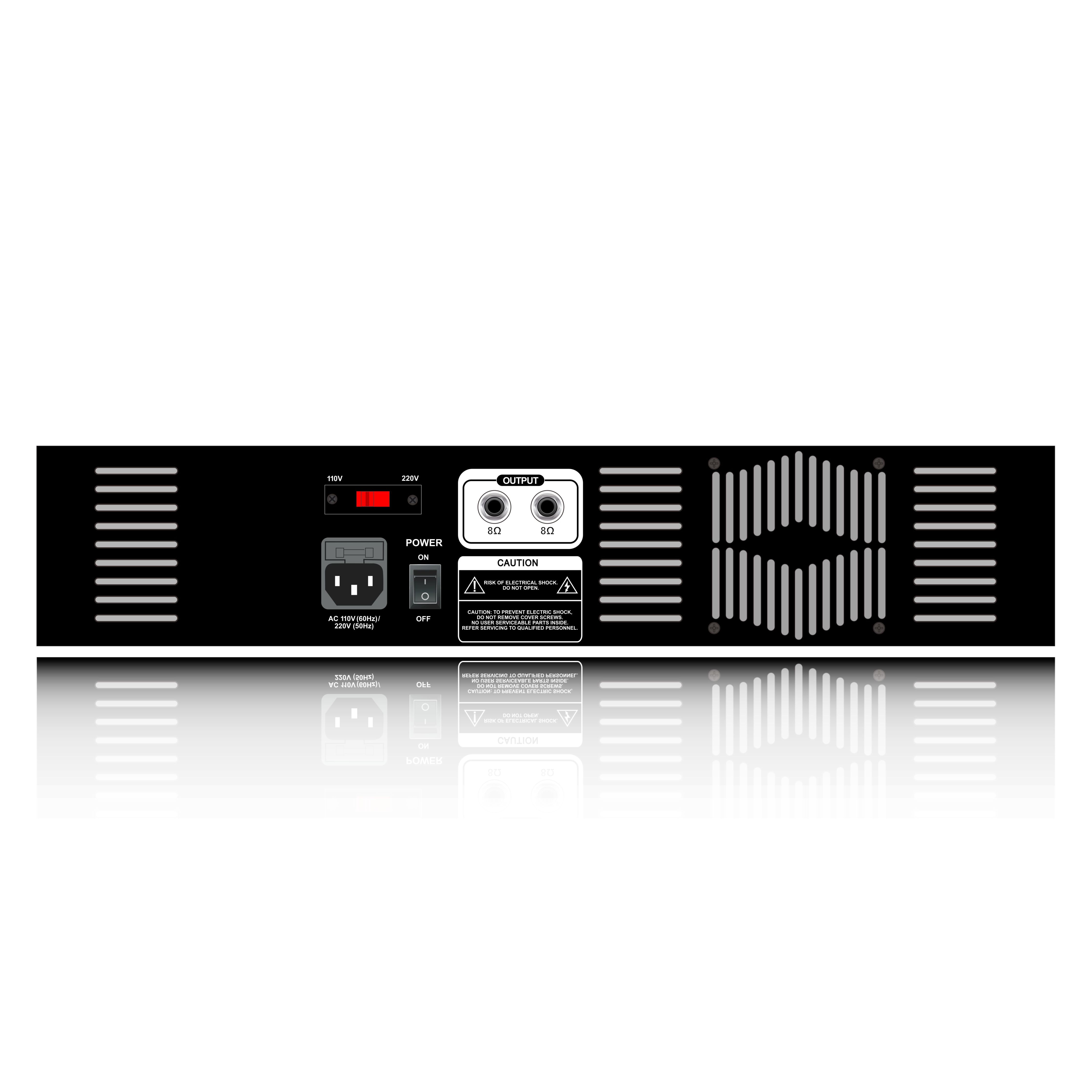

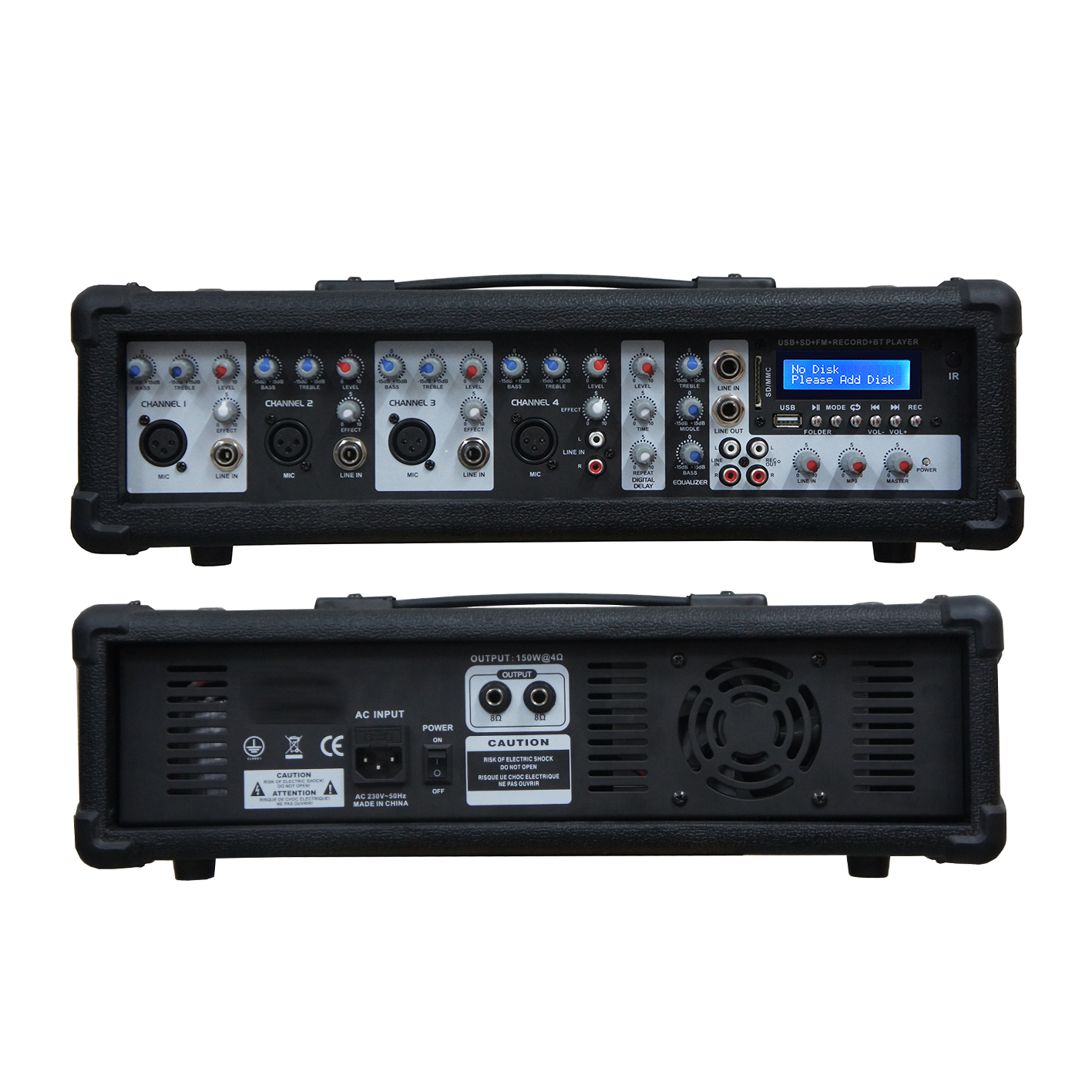

Woodbox Powered Mixer SB4100
Related Modules
-
Power Amplifier
Power Amplifier Type
Class AB
Output Power
250W /4Ω
Protection
Short Circuit Protection
Overheating Protection
Overcurrent Protection
Limiter
Indicators
Power On (Blue)
Connectors
4×Balanced XLR Mic Input
4×6.35mm Jack Line Input
1×Stereo RCA Line Input
1×6.35mm Jack Output
1×Stereo RCA Output
Power Connection: Power CON
Operating Voltage Range
220-240 VAC,5A,50/60Hz,100-120 VAC,10A
Audio Processing
EQ, Level, Noise Gate
User Control
4×Channel Treble/Bass/Effect/Volume Control
Effect Depth/Delay/Repeat Level Control
Treble/Middle/Bass Level Control
Line Volume Control
MP3 Volume Control
Master Volume Control
THD+N Rated Power(%) &4Ω
LF0. 1%/ HF0. 1%
S/N RATIO Rated Power +A
>LF90dB/>HF90dB
Installation Dimensions
470mm×210mm×130mm
Media Player:
MODE
REC
Pause/Folder
USB/SD/FM/BT/RECORD
Cycle Mode
Previous/VOL-
Next/VOL+
Record
-
